Battery Management System Basic Function
BMS Specifications:
- Individual Cell Monitoring & Balancing System
- SoC, SoH, Life Cycle Monitoring
- Self-diagnostics function(optional)
- Battery SOC Indicator
- Data Recording(optional)
- Adjustable & adaptive input/output power controller
- RS485 Communication
- Rapid Charging
- Smart Charging
- more function base on actual project requirement
Protection Circuit:
- Current Sensor
- Voltage Sensor
-
Temperature Sensor
- Circuit Breaker/Fuse
- Over Charge Protection
- Over Discharge Protection
- High Temperature Protection
- Force Reset Button
- More function base on actual project
Battery System Design:

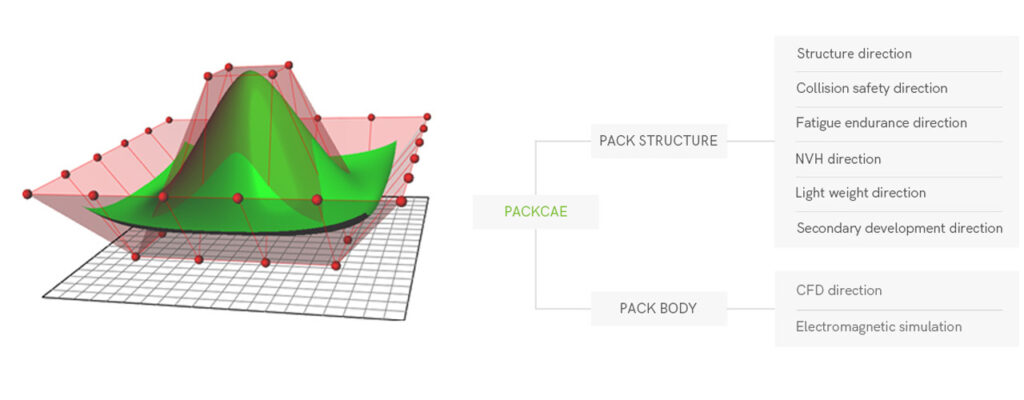

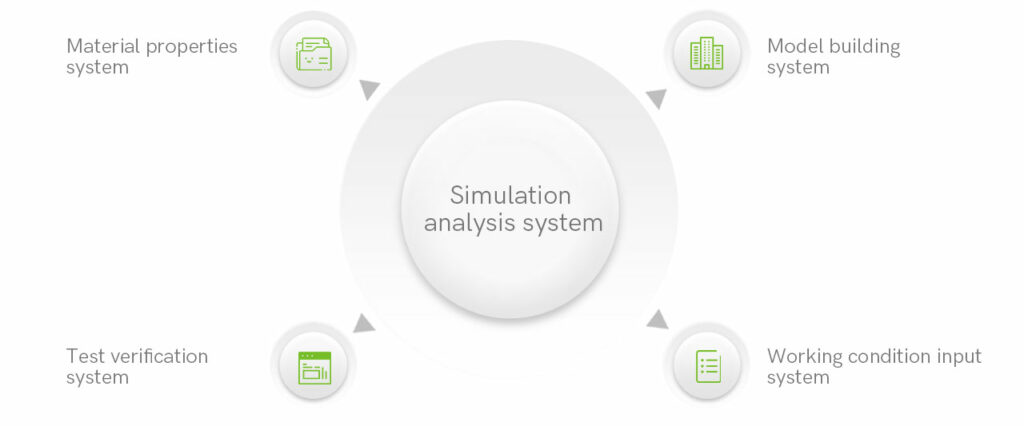

• CAE simulation technology has been widely used in various aspects of battery systems
• In the battery pack, the CAE range covers structure, fluid mechanics, electromagnetics, etc.
Thermal Management System:

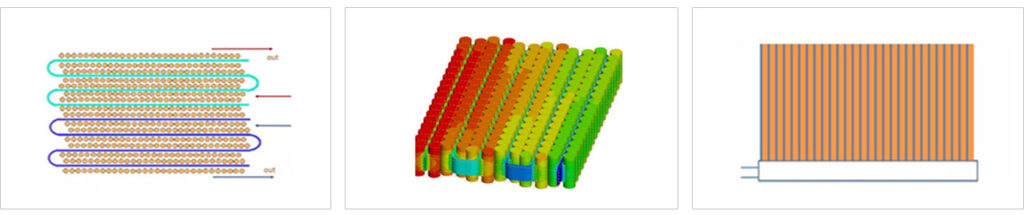

Use CFD simulation as a tool to guide the design and development of thermal management systems
Actively control the battery pack temperature and expand the battery pack environment adaptability

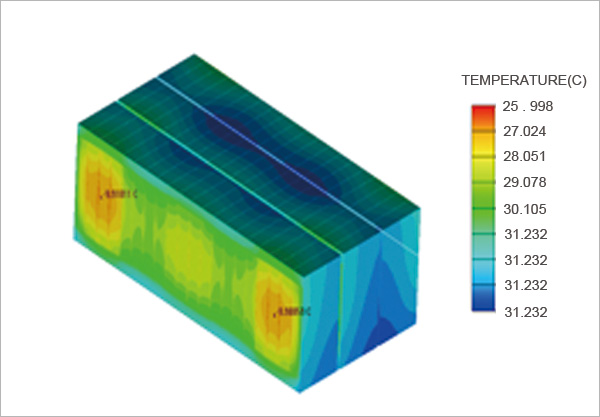

American Ansys Simulation System Temperature
Various working conditions

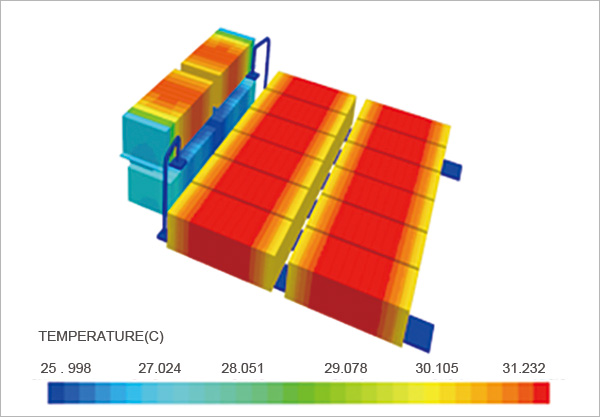

1C Charging liquid cold inlet temperatures 25° C,
Flow rate 10L/min@25°

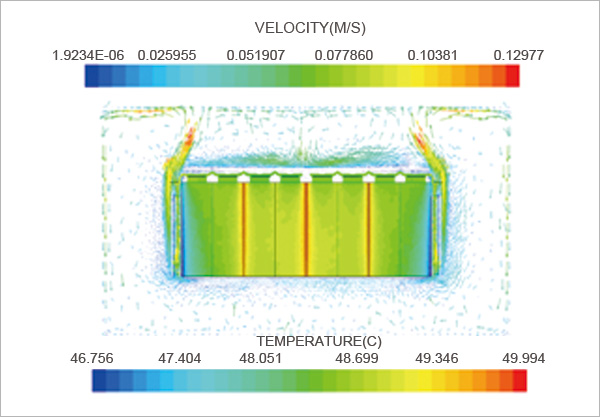

1C Charging natural heat disapation @ 25°C

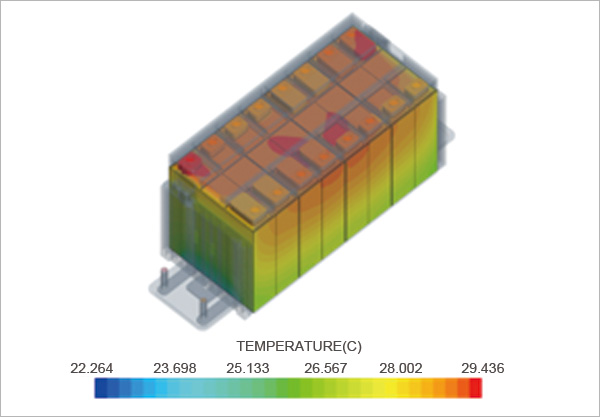

1C Charge liquid cold inlet temperature 25° C,
Flow rate 10L/min@25°C
1C Charging liquid cooling@25°C

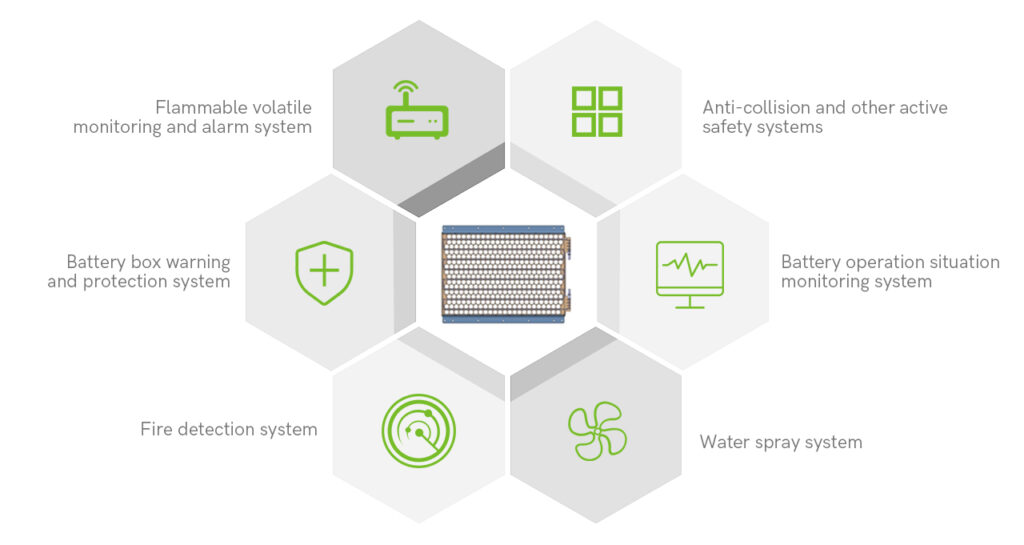

Security Protection Scheme Design and Verification:
